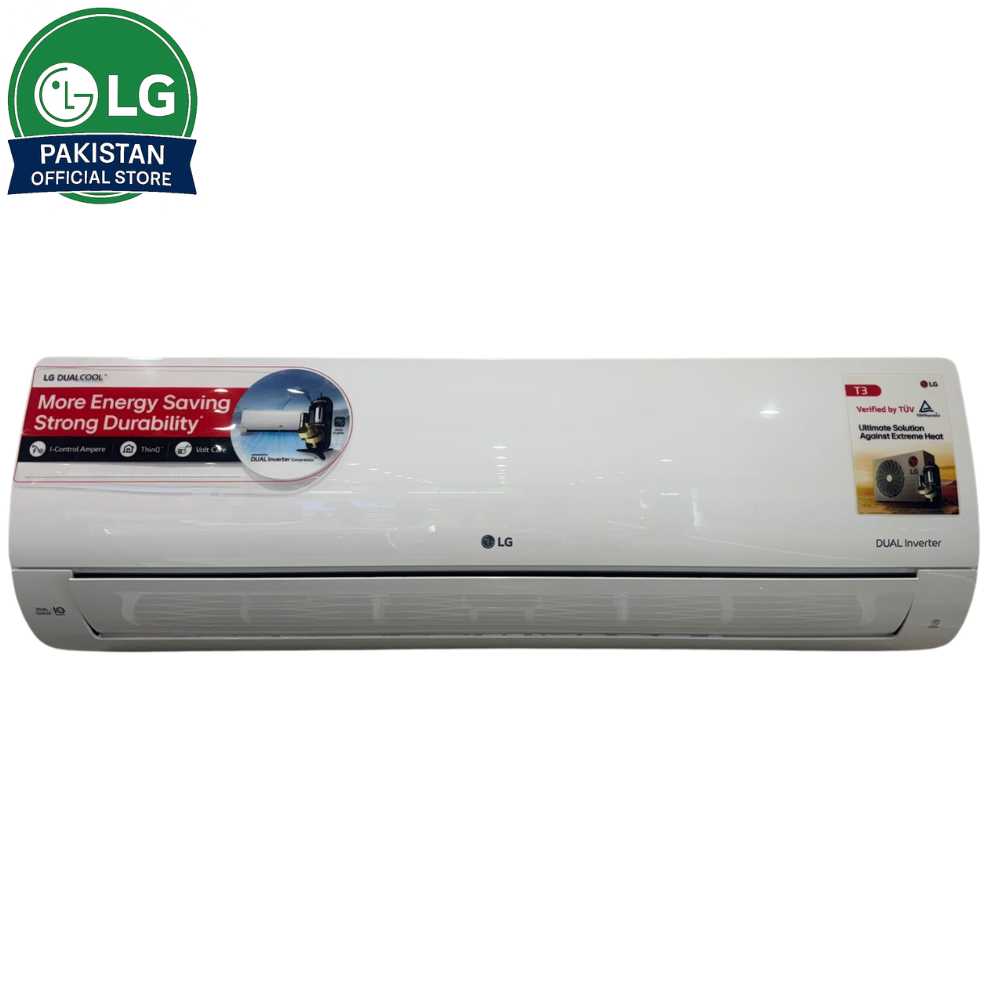

LG 1.5 Ton Dual Inverter AC I18CGH

LG

  • Full DC Inverter AC
  • Dual Inverter Compressor
  • T3 Compressor
  • EER: 3.6
  • 60% Faster Cooling
  • 75% Energy Saving
  • Comfort Sleep
  • Gold Fin

170,000.00 199,999.00

Brands:LG

LG 1.5 Ton Dual Inverter AC I18CGH

Buy the latest LG 1.5 ton dual inverter ac in Pakistan with the highest energy efficiency and t3 compressor. LG I18CGH is a full dc inverter ac which will save upto 75% energy savings in your electricity bills. It is also equipped with t3 compressor which can even perform in 65 degree temperatures as well.

Features:

  • Dual Inverter Compressor™
  • 75% Energy Saving
  • Full DC Inverter AC
  • T3 Compressor
  • TUV Rheinland
  • Energy Saving
  • Fast Cooling
 Dual Inverter Compressor™1

Dual Inverter Compressor™

A compressor with a wider rotational frequency saves more energy and has a faster cooling range.

10 Year Warranty1

10 Year Warranty

Verification obtained from TUV Rheinland for 10-year product life cycle.

TUV Rheinland1

TUV Rheinland

TUV Rheinland, Verification on Fast Cooling & Power Saving Rate(US-W242Kxy0/TS-H2465DA0).

  • Vertical 6 Steps Louver Control1

    Vertical 6 Steps Louver Control

    Users can choose the vane direction among 6 preset positions to meet the exact wind blow direction you desire.

  • Dual Protection Filter1

    Dual Protection Filter

    The Dual Protection Filter captures dust size over 10㎛ and bacteria.

  • Comfort Sleep1

    Comfort Sleep

    Comfort Sleep mode ensures the utmost comfort sleep environment by automatically adjusting 3 different functions(Indirect airflow/7hr off time set/Soft wind & sleep time logic) ,with the simple click of one button.
  • Auto Cleaning1

    Auto Cleaning

    The comprehensive auto cleaning function prevents the forming of bacteria and mold on the heat exchanger and thus provides a more pleasant and comfortable environment for the user.

  • Gold Fin™1

    Gold Fin™

    The Gold Fin™ ensures that the surface is more resistant to corrosion and enhances the durability of heat exchanger for a much longer period.

  • Jet Dry1

    Jet Dry

    Jet Dry technology places priority in dehumidification for areas with high humidity levels to keep your room dry and fresh.

  • Fast Heating1

    Fast Heating

    4 Way Auto Swing adjusts airflow based on the surrounding environment, allowing for optimal distribution of warm air to living areas and enabling quick heating.



CAPACITY

  • Cooling – Min ~ Rated ~ Max(kW)
    0.90/5.28/6.89
    Cooling – Min ~ Rated ~ Max(Btu/h)
    3,070/18,000/23,500
  • Cooling (T3) – Min ~ Rated ~ Max(kW)
    0.79/4.5/6.15
    Cooling (T3) – Min ~ Rated ~ Max(Btu/h)
    2,700/15,300/21,000

POWER INPUT

  • Cooling – Min ~ Rated ~ Max(W)
    320/1452/2900
    Cooling (T3) – Min ~ Rated ~ Max(W)
    374/1759/2900

RUNNING CURRENT

  • Cooling – Min ~ Rated ~ Max(A)
    1.45/6.5/14
    Cooling (T3) – Min ~ Rated ~ Max(A)
    1.77/7.8/14

EER

  • EER(W/W)
    3.64
    EER((Btu/h)/W)
    12.4

EER (T3)

  • EER (T3)(W/W)
    2.56
    EER (T3)((Btu/h)/W)
    8.7

ENERGY LABEL GRADE

  • Cooling / Heating
    4

POWER SUPPLY

  • Ø / V / Hz
    1 , 220 ~ 240 ,50

AVAILABLE VOLTAGE RANGE

  • Available Voltage Range(V)
    187 ~ 253

POWER FACTOR

  • Cooling / Heating(%)
    97.1 / –

MOISTURE REMOVAL

  • Moisture Removal(l/h)
    2.5

INDOOR

  • Air Flow Rate – Cooling, Max / H / M / L(㎥/min)
    19.0/14.5/13.0/10.5
    Sound Pressure Level – Cooling, Max / H / M / L / SL(dB(A))
    -/46/42/37/28
  • Dimensions (W × H × D) – Net(mm)
    998 x 345 x 210
    Dimensions (W × H × D) – Shipping(mm)
    1080 x 422 x 281
  • Weight – Net(kg)
    11.3
    Weight – Shipping(kg)
    13.4
  • Exterior Color Code
    Munsell 7.5BG 10/2 (RAL 9016)

OUTDOOR

  • Air Flow Rate – Max(㎥/min)
    49
    Sound Pressure Level – Cooling, Rated(dB(A))
    55
  • Dimensions (W × H × D) – Net(mm)
    870 x 650 x 330
    Dimensions (W × H × D) – Shipping(mm)
    1026 x 693 x 446
  • Weight – Net(kg)
    42
    Weight – Shipping(kg)
    46
  • Max. Fuse Size(A)
    25
    Exterior Color Code
    Munsell 9.54Y 8.34/1.31 (RAL 9001)
  • Operation Range – Cooling(℃ DB)
    18 ~ 54

CIRCUIT BREAKER

  • Circuit Breaker(A)
    25

POWER SUPPLY CABLE

  • Power Supply Cable(No. × ㎟)
    3 x 2.5

POWER SUPPLY TO UNIT

  • Power Supply to Unit
    Outdoor

POWER AND COMMUNICATION CABLE

  • Power and Communication Cable(No. × ㎟)
    4 x 0.75

PIPING

  • Size – Liquid(mm)
    Ø 6.35
    Size – Gas(mm)
    Ø 12.7
  • Connections Method – Indoor / Outdoor
    Flared / Flared

DRAIN HOSE SIZE

  • O.D, I.D(mm)
    21.5 , 16.0

BETWEEN INDOOR & OUTDOOR

  • Piping Length – Min / Standard / Max(m)
    3/5/30
    Piping Length – No Charge(m)
    7.5
  • Max. Elevation Difference(m)
    25
    Piping Connection Heat Insulation
    Both liquid and Gas Pipes

REFRIGERANT

  • Type
    R410A
    Pre Charge(g)
    1300
  • Additional Charge(g/m)
    15
    Control
    Electronics Expansion Valve

TOOL CODE (CHASSIS)

  • Indoor / Outdoor
    SK / U24A

COMPRESSOR

  • Type
    Dual Inverter Compressor
    Model
    GAT156MCA
  • Motor Type
    BLDC
    Oil Type / Maker
    POE (RB68A) / Sun Oil or Jx
    Nippon
  • Oil Charge (cc)
    400
    Manufacturer / Country of Origin
    LG Electronics/China

FAN(INDOOR)

  • Type
    Cross Flow Fan
    Motor Output(W)
    30

FAN(OUTDOOR)

  • Type
    Propeller Fan
    Motor Type
    BLDC
  • Motor Output (W)
    85
    Motor Insulation
    Class E
  • Motor Enclosure / Ingress Protection
    TEAO/IPX4

HEAT EXCHANGER

  • Evaporator – Material, Tube / Fin
    Cu/Al
    Evaporator – Corrosion Protection
    PCM
  • Condenser – Material, Tube / Fin
    Cu/Al
    Condenser – Corrosion Protection
    Gold
  • Condenser – Fin Type
    Louver
